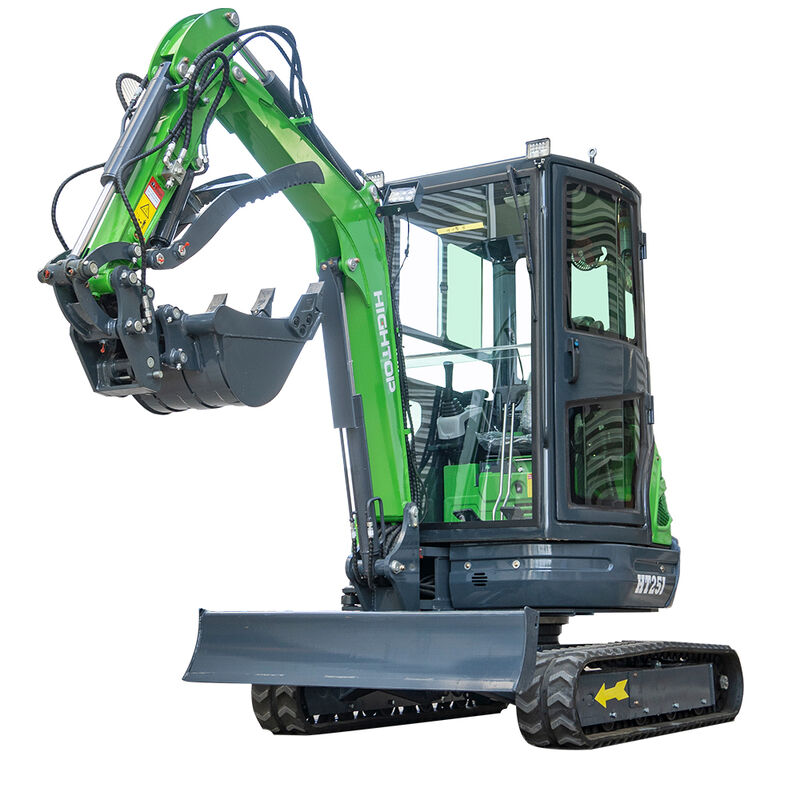

HT25J 2.5-ton CE Certified Mini Excavator

Name: HT25J 2.5-ton CE Certified Mini Excavator
Brand: Shandong Hightop Group
SKU: HT25J
Availability: InStock

起源の場所	中国
ブランド名	Hightop
証明	CE，EPA，ISO，TUV
モデル番号	HT25J

製品詳細

全長/出荷長さA:

2895

全幅B:

1400

上幅D:

1310

全高（キャブ上部） C:

2450

支払及び船積みの言葉

最小注文数量

1セット

パッケージの詳細

木箱梱包

受渡し時間

5～14営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン

供給の能力

毎月100セット

製品の説明

HT25J Small Excavator

The HT25J is Shandong Hightop's flagship 2.5-tonne class tracked mini excavator designed for export. With its compact design, agile handling and reliable power, it is suitable for a wide range of applications, including confined spaces, agricultural and landscaping work, municipal projects and indoor construction. The machine has obtained international certifications such as CE, ISO, EPA and Euro 5, and its quality meets both domestic and international construction standards, making it a workhorse model for small-scale and micro-scale engineering projects.

Overall Dimensions (mm)

Measurement	Value
Overall length/Shipping length A	2895
Total width B	1400
Upper width D	1310
Overall height (top of cab) C	2450
Standard track pad width F	230
Track gauge G	1170
Turning radius at the rear I	709
Track contact length J	1495
Track length K	1830
Height of the dozer blade above the ground R	255
Bucket digging depth T	250

Technical Specifications

Specification	Value
Work quality (KG)	1850
Bucket capacity (m³)	0.04
Rated power	18.9kw/2200rpm
Rotational speed	10r/min
Hill-climbing ability	30 degrees

Working Range (mm)

Measurement	Value
Maximum digging height a	3572
Maximum unloading height b	2276
Maximum digging depth c	2245
Maximum excavation distance d	3705
Minimum turning radius e	1975
Maximum height f at the minimum turning radius	2722
