HT18C 1.8-ton Mini Excavator for Confined Spaces

Name: HT18C 1.8-ton Mini Excavator for Confined Spaces
Brand: Shandong Hightop Group
SKU: HT18C
Availability: InStock

起源の場所	中国
ブランド名	Hightop
証明	CE，EPA，ISO，TUV
モデル番号	HT18C

製品詳細

製品名:

HT18C ミニショベル

全長/出荷長さA:

4150/2350MM

全幅B:

1100 mm

上幅D:

960mm

支払及び船積みの言葉

パッケージの詳細

木箱梱包

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン

供給の能力

毎月100セット

製品の説明

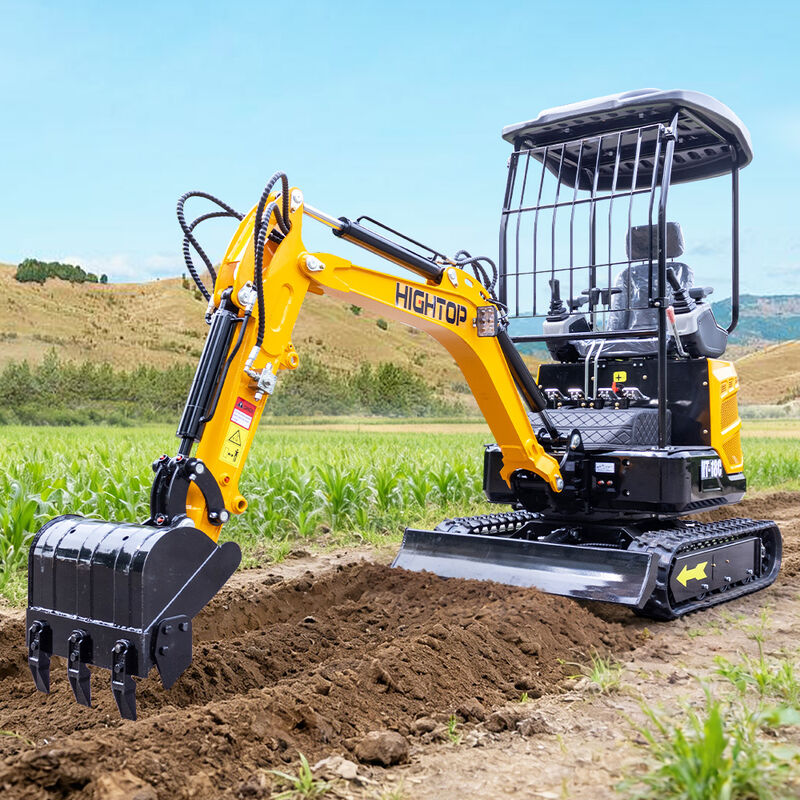

HT18C Mini Excavator

The HT18C mini excavator is a 1.8-tonne class zero-tail swing micro-excavator. With its compact and agile design and swing-out boom, it is ideal for working in confined spaces. Equipped with a high-performance engine, it offers responsive hydraulic control, excellent fuel efficiency and durability, and is widely used in landscaping, agricultural land improvement, municipal works and indoor demolition.

Technical Specifications

Specification	Value
Overall length/Shipping length A	4150/2350 MM
Total width B	1100 MM
Upper width D	960 MM
Overall height (to the top of the cab) C	2280 MM
Standard track pad width F	180 MM
Track gauge G	920 MM
Minimum ground clearance H	119 MM
Turning radius at the rear I	760 MM
Track contact length J	1150 MM
Track length K	1400 MM

Technical Parameter	Value
Quality of work	1000 KG
Bucket capacity	0.02 m³
Rated power	17 KW
Rotational speed	12 RPM
Hill-climbing ability	30°

Scope of Work

Parameter	Value
Maximum digging height a	2490 MM
Maximum unloading height b	1635 MM
Maximum digging depth c	1950 MM
Maximum digging distance d	2880 MM
Minimum turning radius e	1580 MM
Maximum height at minimum turning radius f	1620 MM
