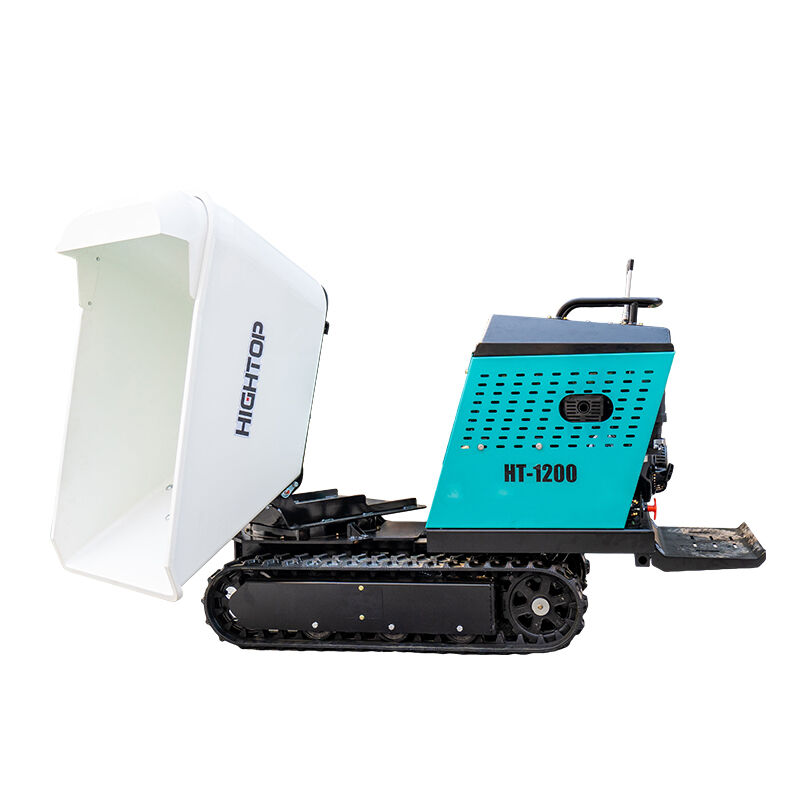

HT1200 Mini Crawler Dumper with 13.5HP Engine

Name: HT1200 Mini Crawler Dumper with 13.5HP Engine
Brand: Shandong Hightop Group
SKU: HT1200
Availability: InStock

起源の場所	中国
ブランド名	Hightop
証明	CE，EPA，ISO，TUV
モデル番号	HT1200

製品詳細

機械型式:

HT-1200

力モデル:

デュカール

パワータイプ:

単気筒、EPA、4 ストローク、空冷

総排気量 (ML):

420CC

評価される力（Kw/rpm）:

13.5HP/3600rpm

ハイライト:

13.5HP Engine Mini Crawler Dumper

1200KG Load Capacity Crawler Rotation Dump Truck

180° Rotation Tracked Dump Truck

支払及び船積みの言葉

支払条件

L/C、D/P、D/A、T/T、ウェスタンユニオン

供給の能力

毎月100セット

製品の説明

HT1200 Crawler Rotation Dump Truck

The HT1200 Crawler Rotation Dump Truck is engineered for heavy-duty material handling applications, combining powerful performance with exceptional maneuverability across challenging terrains.

Key Features

Powerful 13.5HP Engine: 420CC Da Jiang engine delivers robust performance for handling 1200KG maximum loads
Hydraulic Dump with 180° Rotation: Multi-angle dumping capability with independent or synchronous tilt and rotation control
All-Terrain Rubber Track Chassis: Superior traction and 25° climbing capacity for muddy and rugged terrain
Intuitive Centralized Control: User-friendly control panel with clearly labeled buttons for precise operation
Reinforced Durability: Low-maintenance design with easy-access wear parts for long-term reliability

Technical Specifications

Specification	Details
Machine Model	HT-1200
Power Model	Ducar
Power Type	Single Cylinder, EPA, 4-Stroke, Air-Cooled
Total Displacement	420CC
Rated Power	13.5HP/3600RPM
Fuel Type	92# Gasoline
Fuel Tank Capacity	6L
Net Weight	700KG
Maximum Load Capacity	1200KG
Machine Dimensions (Excluding Footrest)	22108901350mm
Machine Dimensions (Including Footrest)	23958901350mm
Cargo Box Dimensions	1300800600mm
Chassis Width	890mm
Cargo Box Capacity	594dm³
Tipping Method	Hydraulic Tipping
Travel Speed	5.2KM/H
Climbing Capacity	25°
Rotation Angle	R180° Left/Right
Crawler Model	1807241
