HT-10CZ 1000kg Crawler Mini Excavator

Name: HT-10CZ 1000kg Crawler Mini Excavator
Brand: Shandong Hightop Group
SKU: HT-10CZ
Availability: InStock

起源の場所	中国
ブランド名	Hightop
証明	CE，EPA，ISO，TUV
モデル番号	HT-10CZ

製品詳細

モデル:

HT10CZ

重さ:

1000kg

掘るバケツ容量:

0.025cbm/120kg

エンジン:

KOOP （192F）

ハイライト:

360 Degree Rotation Mini Excavator

1000kg Compact Excavator

Hydraulic System Crawler Mini Excavator

支払及び船積みの言葉

価格

CE，EPA，ISO，TUV

パッケージの詳細

木製ケース

受渡し時間

5-14勤務日

支払条件

L/C、T/T、D/P、D/A、ウェスタンユニオン

供給の能力

1か月あたり100セット

製品の説明

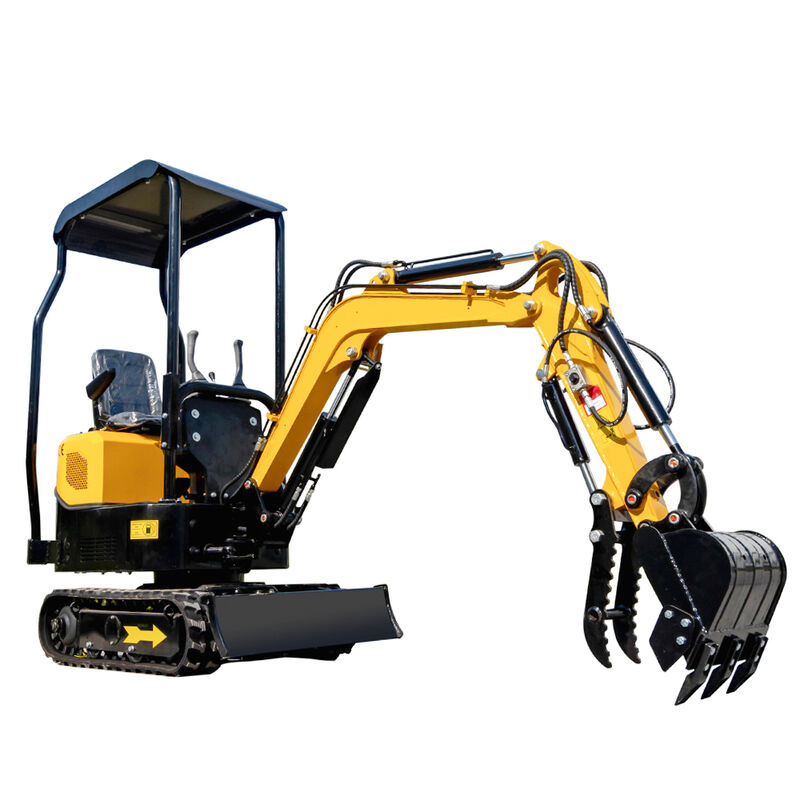

HT-10CZ Mini Excavator

The HT10CZ hydraulic crawler mini excavator features a BRIGGS & STRATTON engine, delivering superior power with energy efficiency. Available with optional boom deflection, telescopic track, and closed cab configurations. Choose from multiple color options including yellow, red, blue, white, or black, with full customization support. Certified with EPA, Euro 5, CE, and ISO standards.

Key Features

Accessible rear cover design for easy maintenance and refueling
360-degree zero-tail swing capability for enhanced maneuverability
Bailiton engine compliant with U.S. EPA environmental requirements
Versatile bucket system compatible with multiple attachments including sieve hopper, narrow bucket with teeth, tilting bucket, flat bucket, rake, hydraulic thumb clamps, looseners, and crushing hammer
Red flexible coupling for effective shock absorption
High-precision filtration system with 1μm precision and 99.9% filtration rate
Integrated oil pressure alarm system for machine protection
Advanced heat dissipation system with sealed exhaust fan
Travel motor pressure relief system for extended component life
Stabilizing and balancing system with thickened four-legged roof structure

Technical Specifications

Model	HT10CZ
Weight	1000kg
Digging Bucket Capacity	0.025cbm/120kg
Bucket Width	380mm
Engine	KOOP(192F)
Optional Engine	BRIGGS & STRATTON YANMAR
Bore Stroke	Single cylinder, fan cool
Rated Power	7kw/3000r/min
Main Pump	G5-6
Displacement	6.8ml/r
Swing Motor	SANYANG (BMRS-250)
Traveling Motor	SANYANG (BMT-245)
Travel Speed	1.5km/h

Main Dimensions

*Overall Dimension (LWH)*	2775 * 930 * 2219 mm
Wheelbase	910 mm
Total Length of Track	1230 mm
Platform Ground Clearance	380 mm
Platform Back Turning Radius	784 mm
Chassis Width	896 mm
Track Width	180 mm
Chassis Ground Clearance	132 mm
Track Height	320 mm
