HT12G Mini Excavator

Name: HT12G Mini Excavator
Brand: Shandong Hightop Group
SKU: HT12G
Availability: InStock

起源の場所	中国
ブランド名	Hightop
証明	CE，EPA，ISO，TUV
モデル番号	HT12G

製品詳細

モデル:

HT12G

エンジン:

KUBOTA Z482

輸送距離:

2380mm

合計幅:

930mm

バケット容量:

0.02m3

ハイライト:

Kubota Z482 Engine Mini Excavator

2380mm Transportation Length Compact Excavator

930mm Total Width Mini Digger

支払及び船積みの言葉

最小注文数量

1セット

パッケージの詳細

木製ケース

受渡し時間

5-14勤務日

支払条件

L/C、D/A、D/P、T/T、マネーグラム、ウェスタンユニオン

供給の能力

1か月あたり100セット

製品の説明

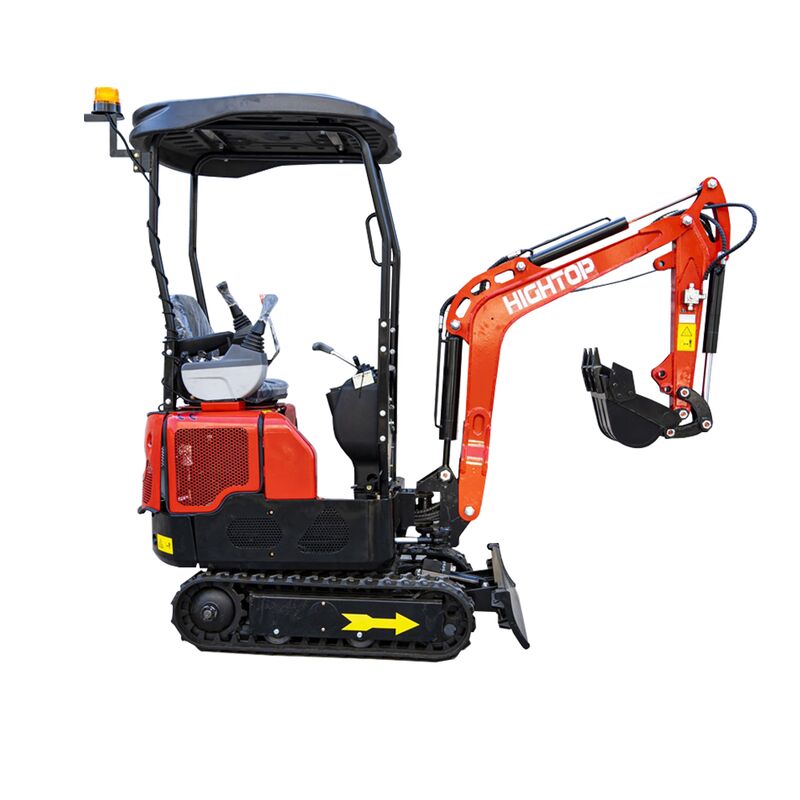

HT12G Mini Excavator

The HT12G Mini Excavator delivers exceptional power and performance in a compact design, engineered for versatility across a wide range of applications.

Key Features

Reliable Engine: Powered by Z482 Kubota engine with horizontal bar air cooling system (10.1 KW)
Durable Hydraulics: Gear pump design ensures easy maintenance and extended service life
Superior Performance: Strong lift and digging capabilities for faster project completion
Compact Maneuverability: Retractable undercarriage provides access to confined spaces
Precision Control: Multiple valves under operating handle for reduced effort and enhanced control
Surface Protection: Rubber tracks prevent damage to concrete and tile surfaces
Convenient Monitoring: Diesel level gauge for easy engine oil checking

Technical Specifications

Model	HT12G
Engine	Z482 Kubota
Transportation Length	2380mm
Total Width	930mm
Upper Width	940mm
Total Height (Cab Roof)	2270mm
Standard Track Shoe Width	180mm
Track Gauge	750mm
Bulldozer Blade Height Above Ground	110mm
Bulldozer Shovel Push Depth	195mm
Tail Turning Radius	820mm
Track Grounding Length	890mm
Track Length	1235mm
Maximum Excavation Height	2455mm
Maximum Dumping Height	1620mm
Maximum Digging Depth	1850mm
Maximum Excavation Distance	2920mm
Minimum Radius	1510mm
Maximum Height at Minimum Turning Radius	1930mm
Work Quality	900kg
Bucket Capacity	0.02m³
Working Device Form	Backhoe
Gradeability	30 degrees
