1.2 ton Mini Excavator

Name: 1.2 ton Mini Excavator
Brand: Shandong Hightop Group
SKU: HT12G
Availability: InStock

製品詳細

モデル:

HT12G

エンジン:

Z482 Kubota Z482

輸送長:

2380mm

合計幅:

930mm

上の幅:

940mm

ハイライト:

930mm Width Mini Excavator

820mm Tail Turning Radius Mini Excavator

支払及び船積みの言葉

最小注文数量

1セット

パッケージの詳細

木製ケース

受渡し時間

5-14勤務日

支払条件

D/A、L/C、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

1か月あたり100セット

製品の説明

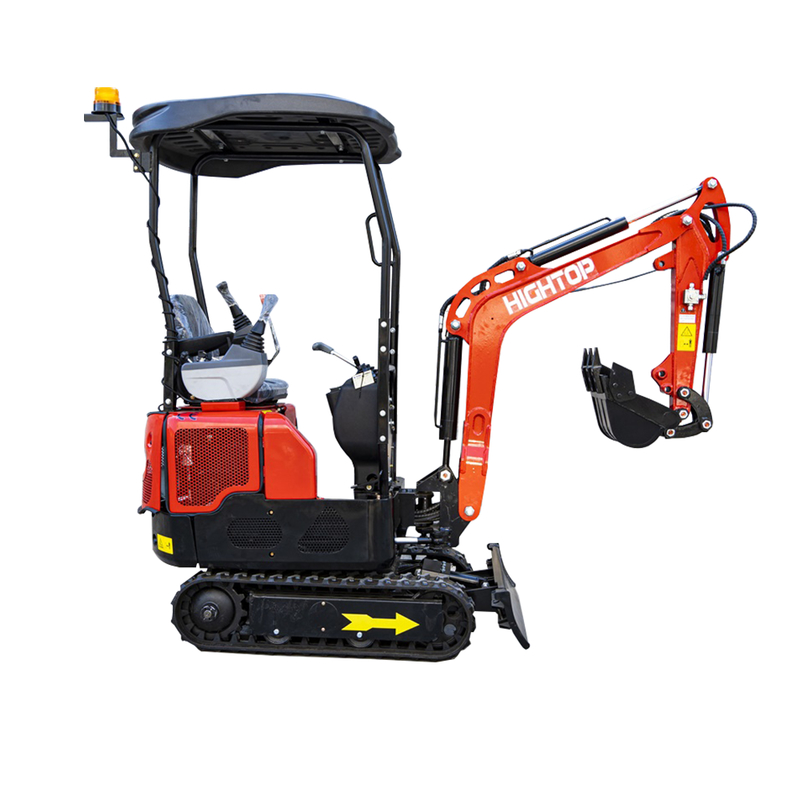

1.2 ton Mini Excavator HT12G

HT12G Mini Excavator Features

Kubota Z482 engine: Provides powerful power output and stable operation under various working conditions.
Full hydraulic pilot control: Advanced system ensures accurate operation, faster response, and improved work efficiency.
Compact chassis design: Total width of 930mm with tail turning radius of 820mm for excellent maneuverability in narrow spaces.
Durable construction: Whole vehicle undergoes shot blasting, pickling, phosphating, and spraying for superior paint adhesion, durability, and rust resistance.

HT12G Mini Excavator Specifications

Model	HT12G	Maximum excavation height	2455mm
Engine	Z482 Kubota	Maximum dumping height	1620mm
Transportation length	2380mm	Maximum digging depth	1850mm
Total width	930mm	Maximum excavation distance	2920mm
Upper width	940mm	Minimum radius	1510mm
Total height (cab roof)	2270mm	Maximum height at minimum turning radius	1930mm
Standard track shoe width	180mm	Work quality	900kg
Track gauge	750mm	Bucket capacity	0.02m³
Height of bulldozer blade above ground	110mm	Form of working device	Backhoe
Bulldozer shovel pushes excavation depth	195mm	Gradeability	30 degrees
Tail turning radius	820mm
Track grounding length	890mm
Track length	1235mm
