HT65 Hydraulic Mini Excavator

製品詳細

製品名:

HT65 油圧ミニショベル

幅を追跡します:

400mm

エンジンオプション:

ヤンマー494/ヤンマー498/クボタ

力:

36.3/42.4/42.5kw

ハイライト:

1800kg Mini Excavator

36.3kw Power Hydraulic Excavator

支払及び船積みの言葉

最小注文数量

1セット

パッケージの詳細

木製のケース

受渡し時間

5-14勤務日

支払条件

L/C、D/A、D/P、T/T、MoneyGram、Western Union

供給の能力

1か月あたり100セット

製品の説明

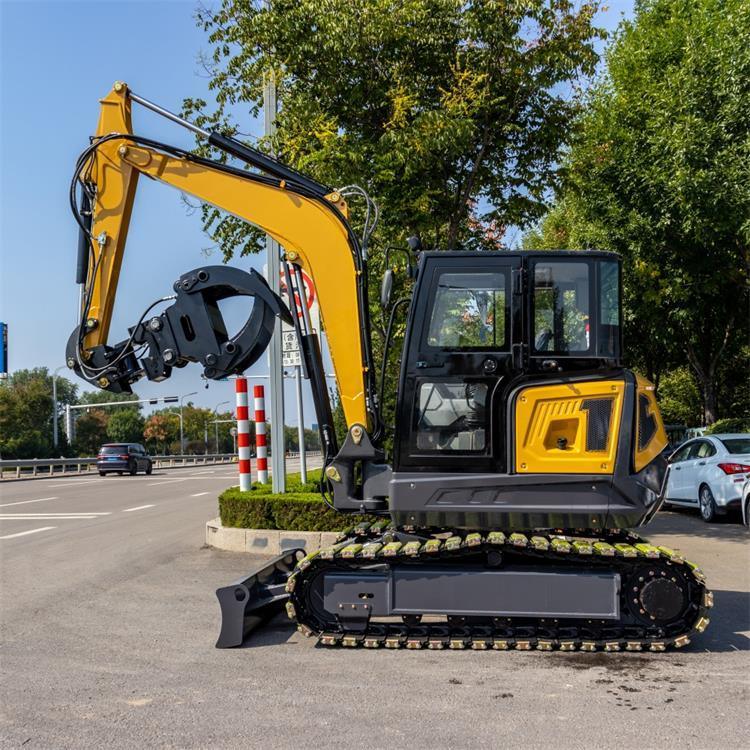

HT65 Hydraulic Mini Excavator

Key Features

Simple structure and compact design for easy installation and maintenance
Utilizes advanced components from world-famous brands in pneumatic, electric, and operation parts
Engineered to minimize working oil consumption while maximizing efficiency across all work site operations
Compatible with multiple attachments including auger, grab, hydraulic hammer, and narrow bucket for versatile applications
Available with EPA or Euro 5 compliant engines
Additional models available in 0.8 ton, 1 ton, 1.6 ton, 1.8 ton, 2 ton, 2.2 ton, and 3.5 ton configurations

Technical Specifications

Specification	Value
Total weight	6600kg
Track width	400mm
Bucket capacity	0.23m³
Arm deflection (left)	45°
Arm deflection (right)	55°
Engine options	Yanmar494/Yanmar498/Kubota
Power	36.3/42.4/42.5kw
Diesel tank capacity	30L
Hydraulic oil tank capacity	41L
Full length	5834mm
Full width	2000mm
Full height	2570mm
Ground clearance	700mm
Ground clearance of counterweight	328mm
Walking speed	2.2/4.2km/h
Number of single-sided supporting wheels	5
