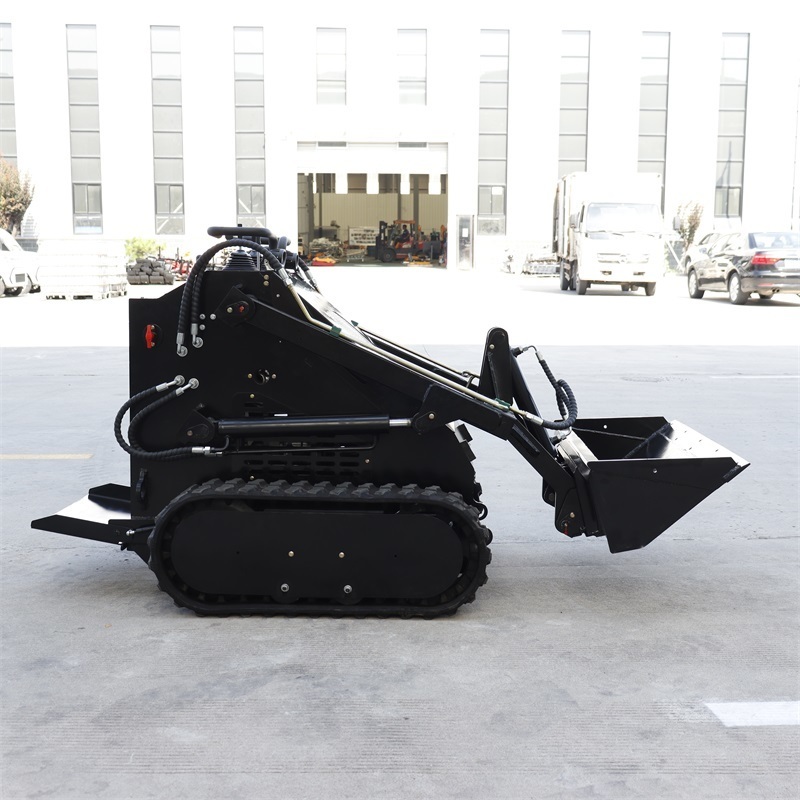

HTS380 Crawler Skid Steer Loader

Name: HTS380 Crawler Skid Steer Loader
Brand: Shandong Hightop Group
SKU: HTS380
Availability: InStock

起源の場所	中国
ブランド名	Hightop
証明	CE，EPA，ISO，TUV
モデル番号	HTS380

製品詳細

製品名:

スキッドステアローダー

最高ピン高さ:

1856mm

ホイールベース:

636のmm

バケツの長さはありません:

1752 mm

合計幅:

1033mm

ハイライト:

Max Pin Height 1856mm Skid Steer Loader

Wheelbase 636mm Crawler Skid Steer

No Bucket Length 1752mm Mini Excavator

支払及び船積みの言葉

最小注文数量

1セット

パッケージの詳細

木製のケース

受渡し時間

5-14勤務日

支払条件

L/C、D/A、T/T、D/P、Western Union、MoneyGram

供給の能力

1か月あたり100セット

製品の説明

HTS380 Crawler Skid Steer Loader

Key Advantages

The HT380 mini skid steer features a Briggs & Stratton engine for superior load capacity. Its dual joystick control system ensures easy operation, while the multi-purpose design accommodates various attachments including de-icers, snow pushers, sweepers, and hedge trimmers.

Product Features

Premium Engine Options: Available with 23hp Kubota® diesel engine or Briggs & Stratton, RATO, LONCIN gasoline engines for reliable performance
Advanced Hydraulic System: Imported motors deliver optimized hydraulics for the industry's smoothest ride and operator comfort
Multi-Functional Capability: Features Italian FASTER quick coupling system for rapid attachment changes including forklifts, excavators, trenchers, augers, and more
Ergonomic Controls: Dual-level ground drive controls with optional joystick for independent track control in challenging job site conditions

Model: HTS380 Specifications

Specification	Measurement
Max working height	2115 mm
Max pin height	1856 mm
Max dump height	1460 mm
Highest point discharge distance	388 mm
Bucket swing angle	55°
Bucket unloading angle	30°
Opening-closing angle	25°
Angle of departure	8°
Total height	1205 mm
Height from ground	90 mm
Wheelbase	636 mm
No bucket length	1752 mm
Total width	1033 mm
Bucket width	980 mm
Total length (with bucket)	2206 mm
Turning radius	1307 mm
