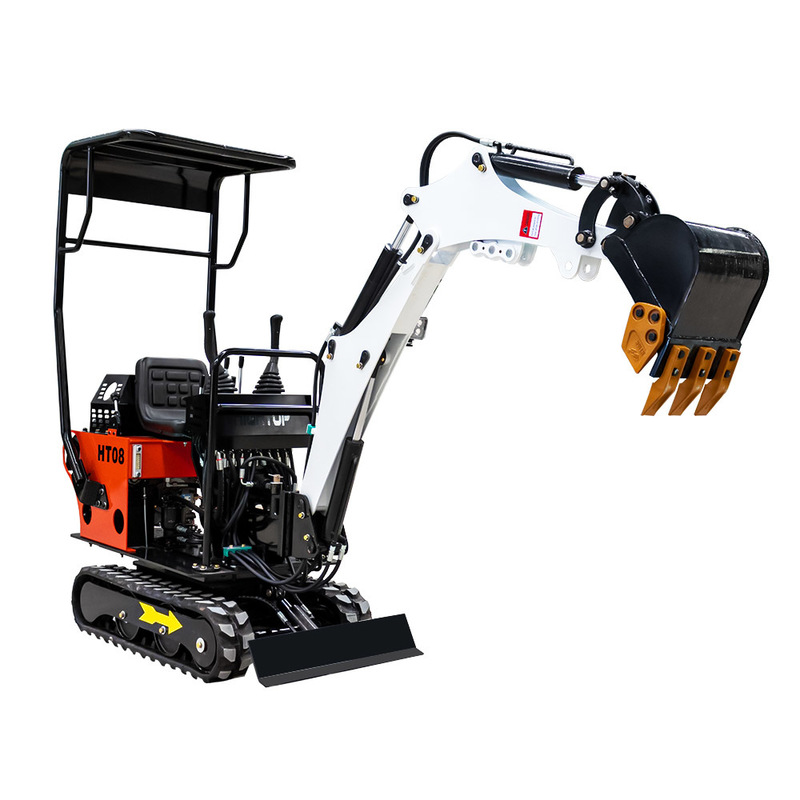

HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket

製品詳細

定格電力:

12 HP

バケット容量:

0.025 M3

重さ:

650kg

最高。掘る力:

7.5KN

段階的な可能性:

30°

ハイライト:

12HP mini excavator with bucket

800kg compact excavator with warranty

支払及び船積みの言葉

最小注文数量

1セット

パッケージの詳細

木製のケース

受渡し時間

5-14勤務日

支払条件

L/C、D/A、D/P、T/T、Western Union、MoneyGram

供給の能力

1か月あたり100セット

製品の説明

HT08 800kg Mini Excavator

Product Features

Hightop excavator features a unique big arm structure design for enhanced durability
Clear front pipeline layout with protective cover to prevent exposure and damage
Excavator arm cylinder uses premium brand components with integrated processing technology
Precision structural components processed through shot blasting, pickling, and baking for superior paint adhesion and gloss
0.8 ton mini excavator equipped with pure cast iron hydraulic pump for greater wear resistance at 3600 rpm
High-quality imported hydraulic pipes for reliable performance
Rubber tracks effectively distribute machine weight, ideal for sensitive surfaces like urban roads, landscaping, and indoor work
Customizable appearance available in yellow, red, blue, black, and other colors

Technical Specifications

Performance Parameters

Working Range

Max. digging distance	2450mm
Max. digging depth	1200mm
Max. digging height	2350mm
Max. dumping height	1600mm
Min. swing radius	1100mm
Max. upgrade height of bulldozer blade	120mm
Max. digging depth of bulldozer blade	200mm
